Tamiya 58743 Toyota Celica GT-Four (ST205) (TT-02) (Includes ESC)
$5 COURIER DELIVERY within NZ for all orders over $99 NZD!

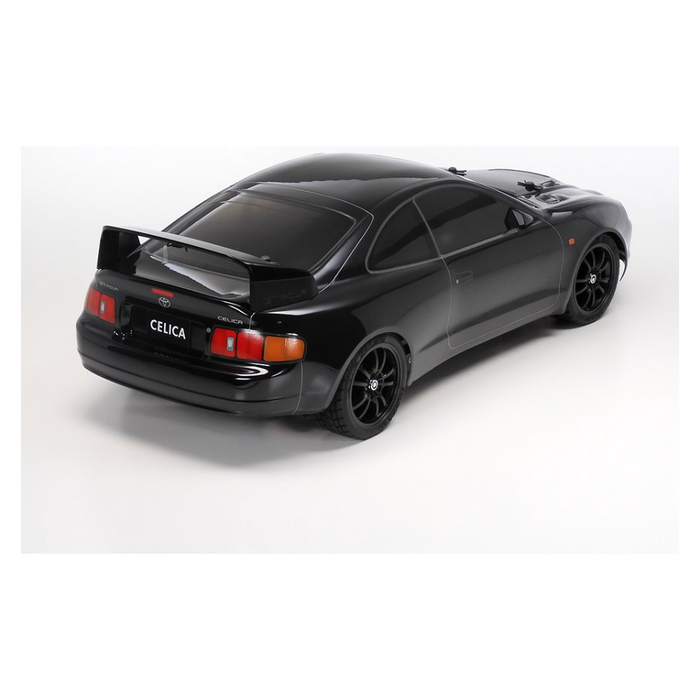

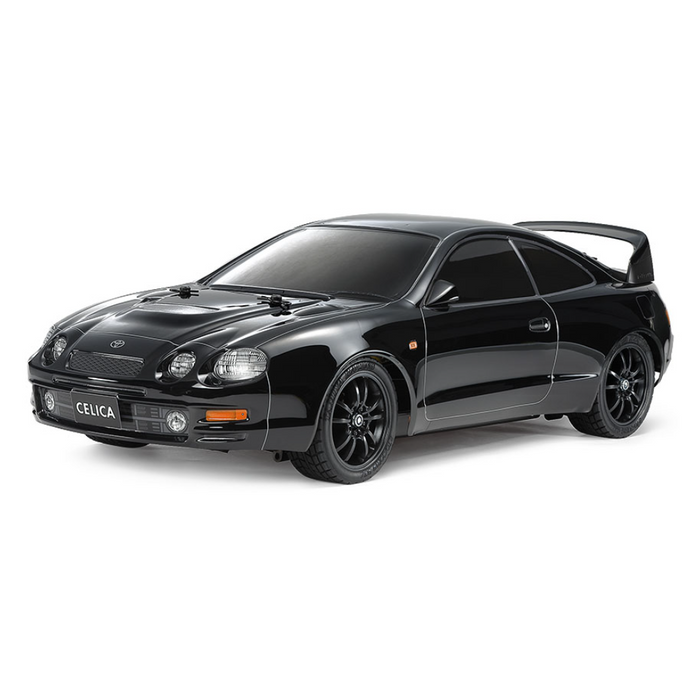

Images show assembled and painted kit.
Toyota developed this high-spec version of the sixth generation Celica with the aim of repeating in 1994 their global rally championship of the previous year. Now it appears as a radio control model assembly kit with a polycarbonate body recreating the car's classic form and separately molded parts adding plenty of detail.
TT-02: Adaptable, balanced shaft driven 4WD

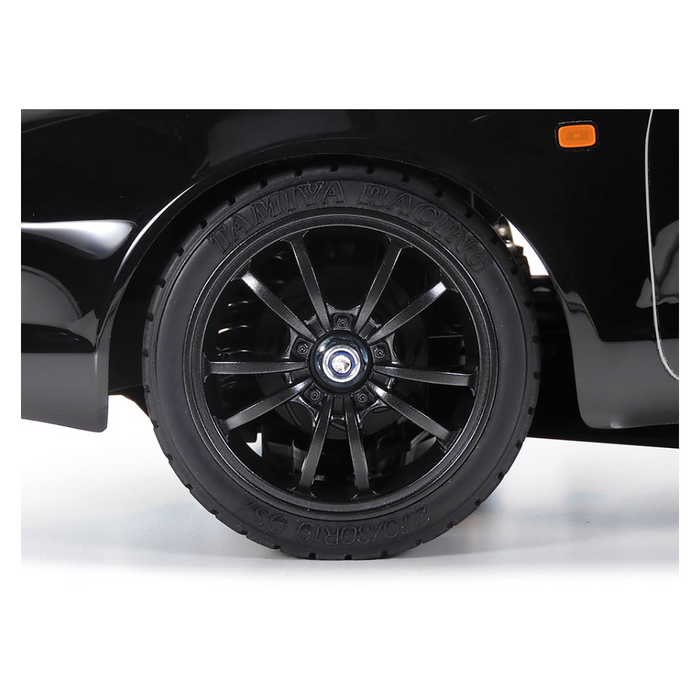

The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports. Gun metal color 10-spoke wheels use semi-pneumatic treaded tires.
Specifications
★Length: 451mm, width: 186mm, height: 134mm ★Wheelbase: 257mm ★Tire width/diameter: 27/67mm (front & rear) ★Bathtub-type frame ★Shaft-driven 4WD ★Front/rear 4-bevel plastic differentials ★3-piece steering tie-rod ★4-wheel double wishbone suspension ★Front/rear friction dampers ★Gear ratio = 8.27:1 (9 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinions) ★Type 540 motor ★ESC included for export.
Separately Required Items
★2-channel R/C system ★R6/AA/UM3 batteries for transmitter ★Battery pack & charger
Servo:
Dsservo DS3218-180 20kg Metal Gear Servo
Batteries: 7.2v - 7.4v (eg: NiMh)
Note: some batteries may require padding to hold in place.
On the supplied ESCs, ensure the correct jumper position based on the battery being used.
- Gens Ace 7.2V 3000mah NiMH battery pack with Tamiya Plug
- Gens Ace 7.2V 5000mah NiMh Battery Pack with Tamiya Plug
Charger:
Please ensure that you read the manual for your charger before charging any batteries.
- GT-Power chargers with the correct adaptors and cell chemistry
- EV-Peak (NiMh/NiCd) - Recommended for NiMh Batteries
- HPI USB 2-6 cell 500ma NiMh delta peak charger (not compatible with batteries over 2500mah)
Transmitter & Receiver:
