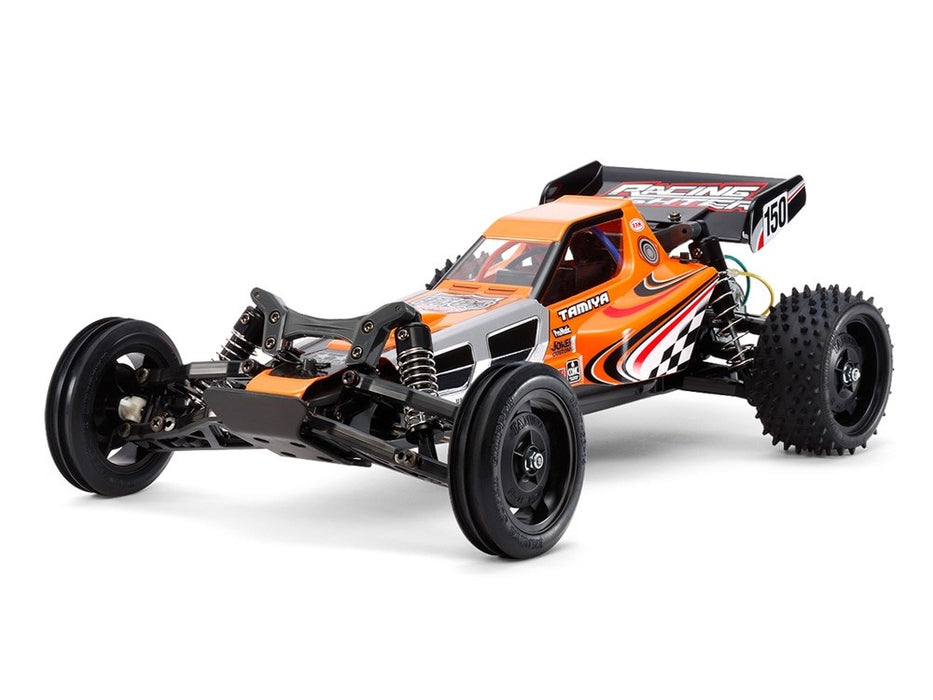

Tamiya 58628 Racing Fighter (DT-03)
$5 COURIER DELIVERY within NZ for all orders over $99 NZD!
Paint not included
An Open Invitation To Get Racing!
The Racing Fighter is the latest model to appear on the easy-assembly, fantastically fun 2WD DT-03 chassis! Inspired by real-life single-seater buggies, the stylish body has a sleek nose and lowdown cockpit. Body and wing are made from lightweight, durable polycarbonate. Stickers are included to create lively markings and framework depictions along the sides of the nose. The long, slender yet tough frame of the DT-03 is combined with 4-wheel double wishbone suspension plus front ribbed and rear square spike tires. You won't be able to resist the temptation to take this exciting newcomer racing!
DT-03 Chassis: Great Fun, Minimum Fuss
The stylish slimline form of this chassis stems from its lightweight yet durable monocoque frame, which features a longitudinally-positioned battery and the R/C equipment along the centerline for excellent balance. The combination of a long 287mm wheelbase and 4-wheel double wishbone suspension married to friction dampers with long arms, allows the model to handle with stability on poor surfaces. Ribbed front and square spike rear tires provide ample grip, and the rear-positioned gearbox is sealed to protect from dust and dirt, with the built-in differential gear offering smooth cornering.
Specifications
●Length: 400mm, Width: 244mm, Height: 134mm ●Wheelbase: 287mm ●Tread (Front/Rear): 222/208mm ●Tire Width/Diameter: 23/81mm (Front), 41/86mm (Rear) ●Monocoque Frame ●Rear Wheel 2WD ●3-Bevel Differential ●2-Piece Steering Tie-Rod ●Front & Rear Double Wishbone Suspension ●Gear Ratio = 9.28:1 ●Type 540 Motor ●Includes Electronic Speed Controller
Separately Required Items
●2-Channel R/C Unit ●Battery Pack & Charger ●R6/AA/UM3 batteries for transmitter
Servo:
Batteries: 7.2v - 7.4v (eg: NiMh)
Note: some batteries may require padding to hold in place.
On the supplied ESCs, ensure the correct jumper position based on the battery being used.
Gens Ace 3000mah NiMH battery pack with Tamiya Plug
Charger:
Please ensure that you read the manual for your charger before charging any batteries.
- GT-Power chargers with the correct adaptors and cell chemistry
- EV-Peak (NiMh/NiCd)
- HPI USB 2-6 cell 500ma NiMh delta peak charger (not compatible with batteries over 2500mah)
Transmitter & Receiver:
