Tamiya 56371 1/14 R/C Scania 770 S 8x4/4

Tamiya 56371 1/14 R/C Scania 770 S 8x4/4

by Tamiya
$2,205.95 - $2,205.95
$2,205.95
$2,205.95 - $2,205.95
$2,205.95
Availability:
Only 1 left!
SHOP WITH CONFIDENCE
Not 100% sure? If you change your mind simply return your order within 10 days for a full refund. Terms and conditions apply.

$5 COURIER DELIVERY within NZ for all orders over $99 NZD!

Read More on Shipping Here

Scandinavian Superstar

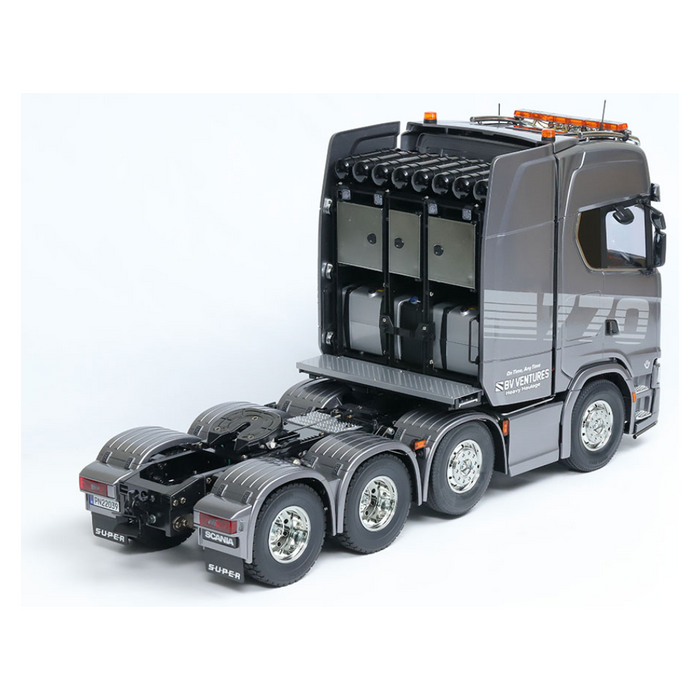

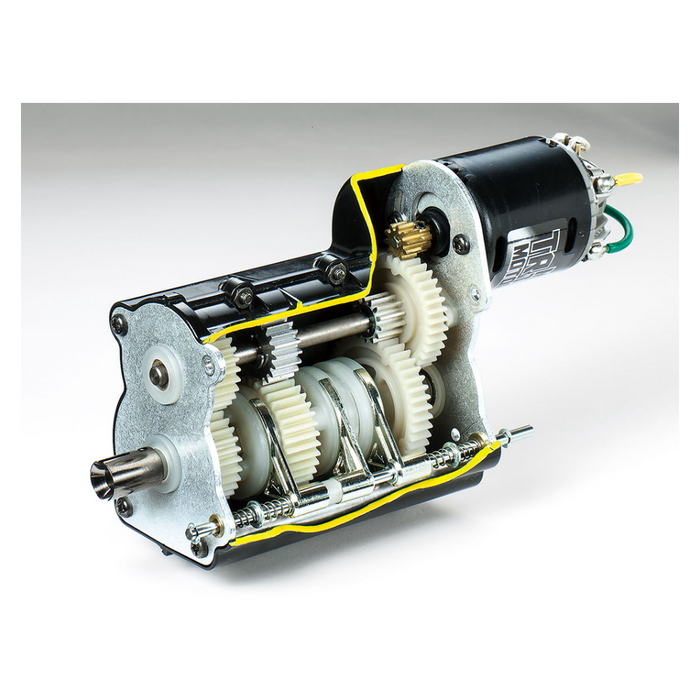

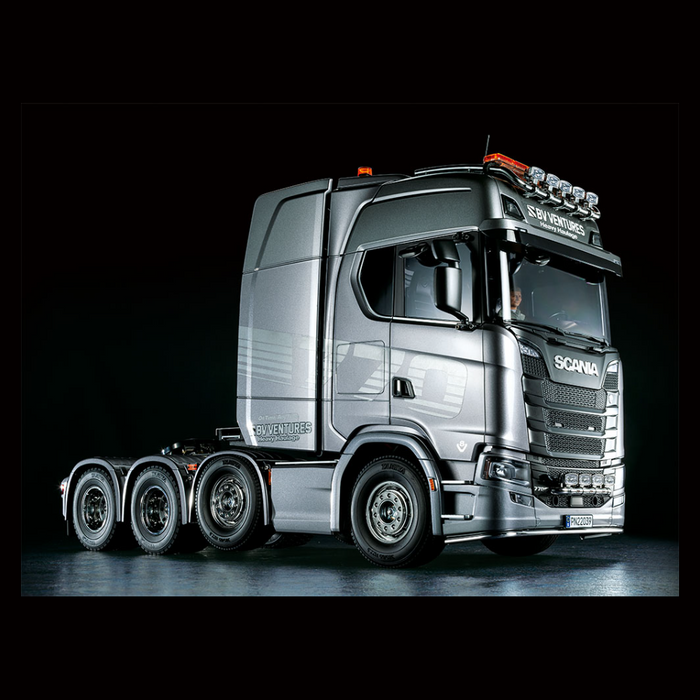

This R/C model assembly kit recreates the Scania 770 S 8x4/4, a double front-axle steering, double rear-axle drive eight-wheel heavy trailer head equipped with a 16.4-liter V8 turbo engine capable of 770hp, added in 2020 to the Swedish manufacturer Scania's top-grade S Series. The model has a highly realistic body with interior details, and a chassis featuring a ladder frame with aluminum side channels. Power is delivered to the two rear axles via a 3-speed transmission, while the two front axles are steered by a single servo; the second axle is a lift axle which can be manually raised and lowered.

Specifications
●Length: 610mm, width: 196mm, height: 320mm, weight (without optional parts): approx. 4.2kg ●Wheelbase: 183mm + 109mm + 103mm ●Tread: 155mm (front), 138mm (rear, double tire) ●Chassis: aluminum & polycarbonate resin ladder frame ●Suspension: front/rear leaf spring rigid ●Caster angle (front/rear): 0°/0° ●Camber angle (front/rear): 0° ●Toe angle (front/rear): 0° ●Aluminum dummy dampers (front/rear) ●Dual rear axle drive　●3-gear transmission (gear shifting operated via transmitter) ●Gear ratio = (1st gear) 32.49:1, (2nd gear) 17.66:1, (3rd gear) 10.66:1 ●3-bevel differential gears ●Type 540 motor ●Tire width/diameter: 30mm/85mm (front); 22mm/84mm (rear)

Separately Required Items
★R/C system ★Servos x2 ★ESC or Multi-Function Control Unit ★R6/AA/UM3 batteries for transmitter ★Battery pack & charger

MFC:

MFC-03 Euro Style


Servos (2 Required):

Dsservo DS3218-180 20kg Metal Gear Servo


Batteries: 7.2v - 7.4v (eg: NiMh)

Note: some batteries may require padding to hold in place.

On the supplied ESCs, ensure the correct jumper position based on the battery being used.


Charger:

Please ensure that you read the manual for your charger before charging any batteries.


Transmitter & Receiver:

Futaba 4YWD 4CH 2.4Ghz and R214GFE Receiver
