Tamiya 47531 1/10 Scale R/C Nissan R91CP (Excludes ESC)

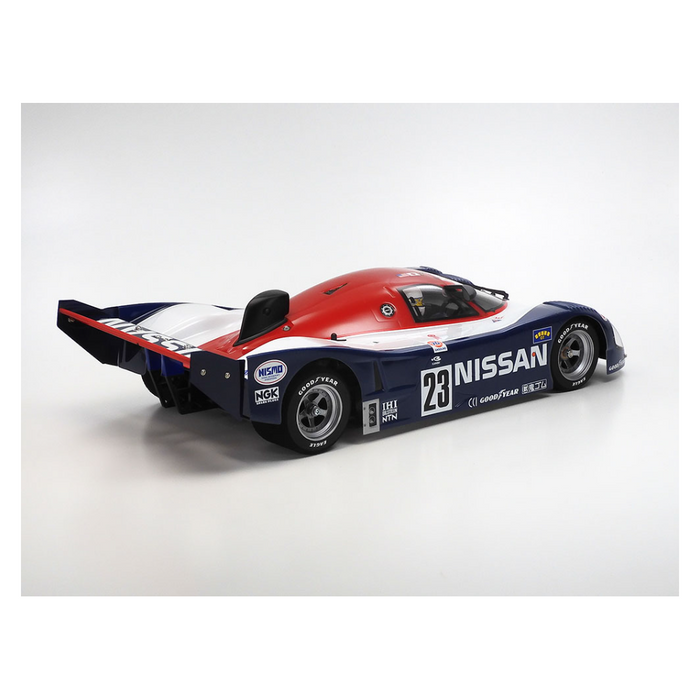

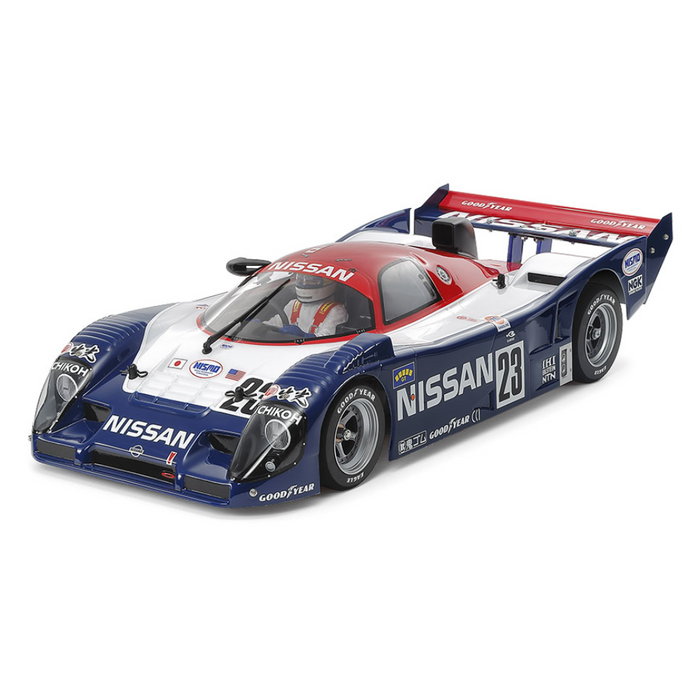

Images show assembled and painted kit.

This R/C model assembly kit recreates the Nissan R91CP, which followed up its 1991 All-Japan Sports Prototype Championship triumph with a victory in the 24 Hours of Daytona in 1992. The aerodynamic, sleek form is recreated in lightweight and durable polycarbonate plastic. The rear induction pod, side mirror on the driver’s side and windshield wiper are separately molded and add extra realism. Stickers are included for sponsor logos and racing number, and masking stickers for windows and headlights. The cockpit is realistically recreated with a steering wheel and shift lever; the driver figure has 3 marking options. The direct-drive 2WD chassis gives a crisp, responsive drive and allows a range of settings for features such as ground clearance, chassis roll and rear oil damper. Take this chance to get your hands on a champion!

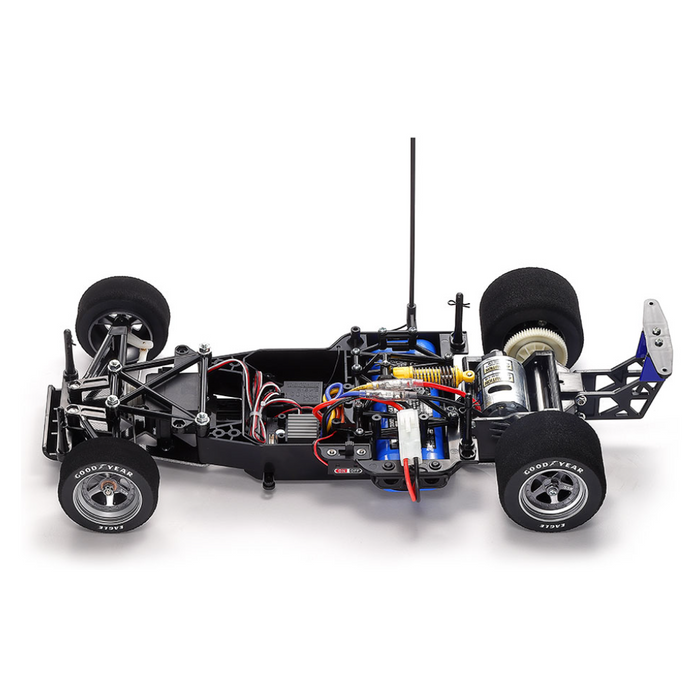

Direct-Drive 2WD Chassis

Based around an ABS plastic bathtub, with space frames front and rear and FRP plate, the chassis is a composite design that offers a rigid base to back up the fluid suspension: the result is a crisp, responsive drive. At the front, it has an independent coil spring king pin suspension setup, while the rear rigid suspension is a 3-point design with a 1.5mm thickness FRP T-bar and CVA oil damper; teamed up with sponge tires front and rear, they ensure superb road holding. Additionally, use of spacers allows two different front and three rear ground clearance setups. The 2WD direct-drive setup transmits power straight to the rear wheels via a spur gear, with a built-in ball differential giving limited slip diff effect.

Specifications

●Length: 480mm, width: 204mm, height: 109mm ●Wheelbase: 270mm ●Tire width/diameter: 28/64mm (front), 45/68mm (rear) ●Bathtub frame with space frame and FRP plate ●Transverse motor direct-drive 2WD ●Ball differential ●2-piece steering tie-rod ●Independent coil spring king pin suspension (front), 3-point suspension with a 1.5mm thickness FRP T-bar and CVA oil damper (rear) ●Gear ratio = 5.00:1 ●Sport-Tuned motor  ●Grippy sponge tires

Separately Required Items

●2-channel R/C system w/ESC ●R6/AA/UM3 batteries for transmitter ●Battery pack & charger

ESC:

Tamiya THW-1060 Brushed ESC

Servo:

Dsservo DS3218-180 20kg Metal Gear Servo

Batteries: 7.2v - 7.4v (eg: NiMh)

Note: some batteries may require padding to hold in place.

On the supplied ESCs, ensure the correct jumper position based on the battery being used.

• Gens Ace 7.2V 3000mah NiMH battery pack with Tamiya Plug
• Gens Ace 7.2V 5000mah NiMh Battery Pack with Tamiya Plug

Charger:

Please ensure that you read the manual for your charger before charging any batteries.

• GT-Power chargers with the correct adaptors and cell chemistry
• EV-Peak (NiMh/NiCd) - Recommended for NiMh Batteries
• HPI USB 2-6 cell 500ma NiMh delta peak charger  (not compatible with batteries over 2500mah)

Transmitter & Receiver:

Futaba 3PRKA and R203GF receiver
