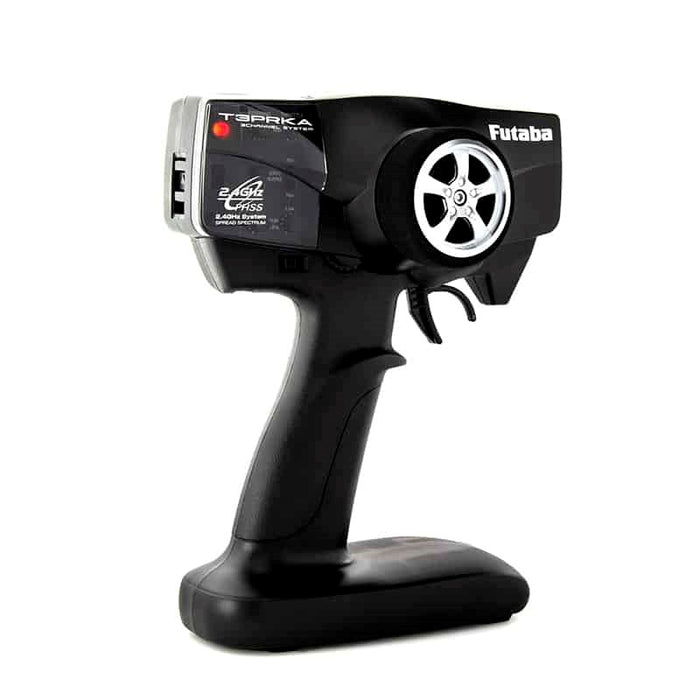

3PRKA Transmitter – 3-Channel Digital Proportional RC System

For Use with Surface Models (01004363-3)

FEATURES

STEERING TRIM:
Steering neutral adjustments can be made by moving the steering trim knob to the left or right.

THROTTLE TRIM:
Throttle neutral adjustments can be made moving the throttle trim to the left or right.

STEERING DUAL RATES:
Use this function to adjust the steering travel of your model.

STEERING SERVO REVERSING:
This function reverses the rotation direction of the steering servo.

THROTTLE SERVO REVERSING:
This function reverses the rotation direction of the throttle servo.

THROTTLE END POINT ADJUSTMENT (EPA):
This function is used to adjust the forward and brake side servo travel. Each direction can be adjusted independent of each other. Use this feature to set the throttle servo travel.

CH3 FUNCTION:
One other channel can be used besides the steering wheel and the throttle operation. Right and left operation of two actions can be done by using the servo. CH3 cannot operate EPA function and servo function linearly.

CONTENTS

YOUR T3PRKA INCLUDES THE FOLLOWING COMPONENTS:

• T3PRKA Transmitter
• R203GF Receiver
• SSW-GS
• Mini Screwdriver

TRANSMITTER SPECS

FHSS SYSTEM, WHEEL TYPE, 3 CHANNELS

COMMUNICATION METHOD:
One-way operating system

MAXIMUM OPERATING RANGE:
80m (Optimum condition)

FOR SAFETY:
F/S, ID

TRANSMITTER FREQUENCY:
2.4 GHz band

POWER REQUIREMENT:
(Dry Cell Battery) Penlight x 4 (6 V)

CURRENT DRAIN:
100 mA or less

TRANSMISSION ANTENNA:
1/2λ di-pole

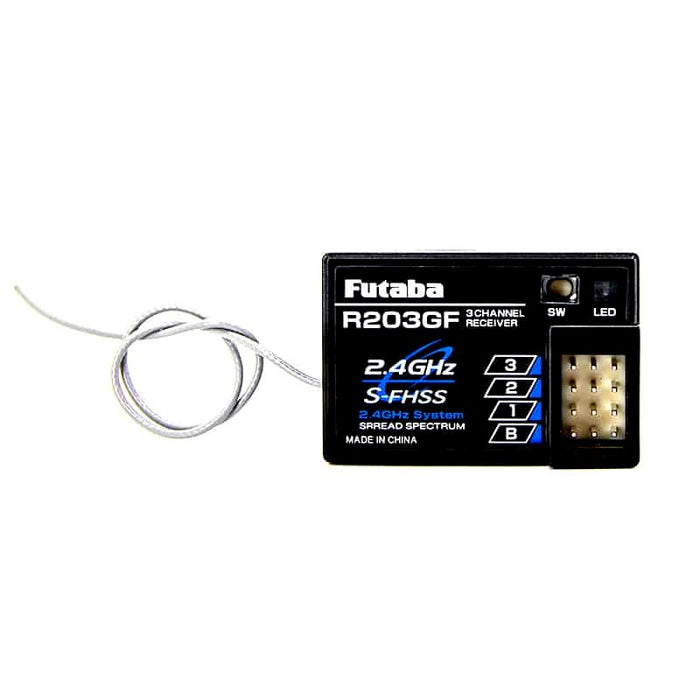

RECEIVER SPECS

R203GF

SIZE:
39 x 26 x 10 mm
1.54 x 1.02 x 0.39 in

WEIGHT:
8 g
0.28 oz

OPERATING VOLTAGE:
DC 4.8-7.4V
