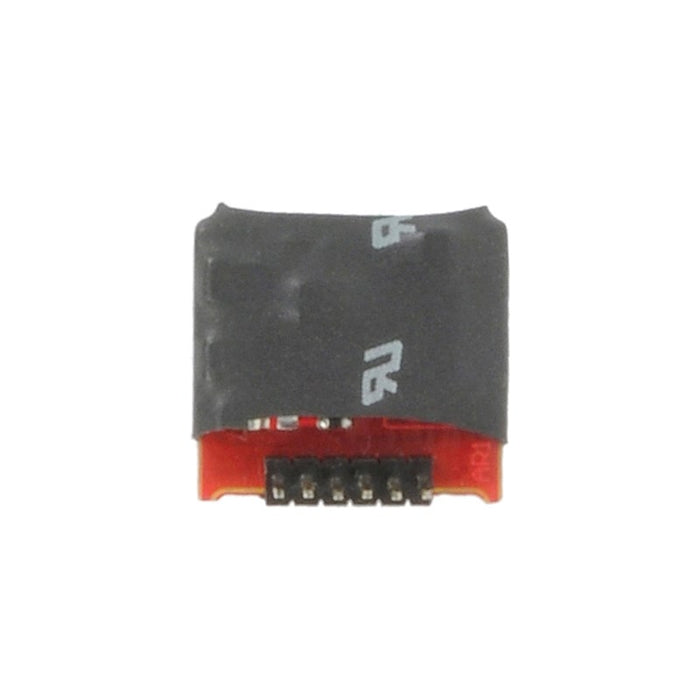

E-Z Command 36-556RA 6-pin 90° DCC Loco-Decoder


$39.95
SHOP WITH CONFIDENCE
Not 100% sure? If you change your mind simply return your order within 10 days for a full refund. Terms and conditions apply.

A 6 Pin DCC Decoder designed specifically for use in the Graham Farish N scale Class 3F ‘Jinty’ (item No. 372-21x) and Class 64XX ‘Pannier Tank’ (item No. 371-98x) locomotives.

Highlights include:

Dual-mode DCC/DC decoder with Back EMF function
1.0A continuous load
2 powered function outputs

Operating Modes

NMRA DCC with 14, 28 and 128 speed steps
Short and Long addresses
Advanced consist addressing
DCC and DC operation

Motor Control Features

1.0A continuous load
Back EMF speed regulation
Silent 15.6Khz pulse width modulation of motor voltage
Adjustable acceleration and braking
15 pre-set speed curves
28-point user programmable speed curve
Supports brake on DC

Function Outputs

2 powered function outputs
100mA load per output
NMRA function mapping to match outputs with user selectable function key

Dimensions

14.5mm x 9.5mm x 3.5mm

Default Address

Address 3

This decoder is manufactured on behalf of Bachmann Europe by Soundtraxx. For full technical specifications and instructions, please refer to the Soundtraxx user guide for MC1 decoders at www.soundtraxx.com/manuals/mobile-decoders
