Tamiya 58568 Neo Scorcher (TT-02B)
$5 COURIER DELIVERY within NZ for all orders over $99 NZD!
Paint not included
Burn through the off-road circuits!

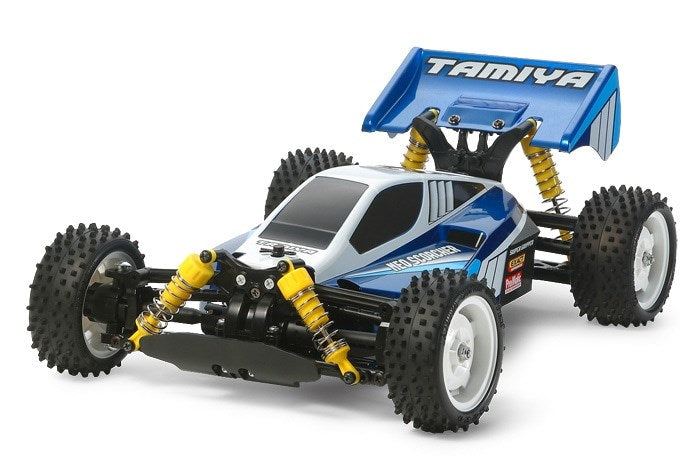

The Scorcher, a popular and speedy 4WD racing buggy from the late-1980s Tamiya line-up, is back, with a new name and updated body! Made from durable polycarbonate and featuring a stylish large rear wing, the body design drew heavily upon the original Scorcher for inspiration, and can be decorated with the minimum of fuss thanks to the large stickers included. It runs on the easy-assembly shaft-driven 4WD TT-02B, and marries the chassis' controllability with square spike tires for superior grip on rough surfaces. This off-road veteran is back with new features to scorch your rivals!
Shaft-Driven 4WD and Superior Handling from the TT-02B
The shaft-driven 4WD TT-02B buggy chassis uses a skid-shaped frame. Its suspension setup uses 4-wheel independent double wishbone suspension with long arms, plus CVA shock units, giving the car assured handling, while left and right suspension arms and uprights are identical to facilitate hassle-free assembly. Front and rear gearboxes include 4-bevel differentials for smooth operation, and are sealed to ensure that dust can't get inside. The top can be removed simply by loosening four screws, making maintenance a breeze. Four different gear ratios can be applied with the use of three separately-sold types of pinion gears, allowing you to match the characteristics of your car setup to the conditions at any given time. Of course, this off-road chassis also includes receiver case and motor cover to protect them from dirt and debris thrown up off of the track.
Specifications
●Length: 380mm, Width: 250mm, Height: 145mm ●Wheelbase: 266mm ●Tread: 217mm (Front), 208mm (Rear) ●Bathtub-type Frame ●Shaft-Driven 4WD ●Front/Rear 4-Bevel Resin Differentials ●3-Piece Steering Tie-Rod ●4-Wheel Double Wishbone Suspension ●Tire Width/Diameter: 32/82mm (Front), 41/82mm (Rear) ●Front/Rear CVA Oil Dampers ●Gear Ratio = 10.71:1 (using kit-included pinion gear) ●Type 540 Motor ●Electronic Speed Controller included
Separately Required Items
●2-Channel R/C Unit with ESC ●Battery Pack & Charger ●R6/AA/UM3 batteries for transmitter
Servo:
Batteries: 7.2v - 7.4v (eg: NiMh)
Note: some batteries may require padding to hold in place.
On the supplied ESCs, ensure the correct jumper position based on the battery being used.
1200mah 7.2v NiMh requires Mini Tamiya to Tamiya adaptor
Charger:
Please ensure that you read the manual for your charger before charging any batteries.
- GT-Power chargers with the correct adaptors and cell chemistry
- EV-Peak (NiMh/NiCd)
- HPI USB 2-6 cell 500ma NiMh delta peak charger
Transmitter & Receiver:
